The extruder screw adopts a large length-to-diameter ratio: L/D=38, with a dual mixing head and a separate structure, which can ensure 100% plastification of the molten material before it enters the die.
The feed section is equipped with spiral grooves, which can increase the output by 30%.
The die head adopts a spiral design, eliminating material stagnation and significantly improving the quality of the pipe.
The sizing sleeve features a special disc design, ensuring high-speed extrusion of pipes.
The two vacuum chambers are fully independently controlled, making operation as convenient as a single line.

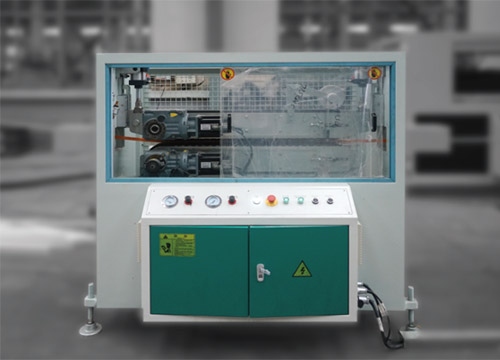

The dual traction machines are fully independently controlled, as easy to operate as a single line, and equipped with an upper track limit device to ensure the roundness of the pipe.
The dual cutter features chipless cutting, with fully independent control, making operation as convenient as a single line.
The follower synchronization adopts a motor synchronous belt structure to ensure normal cutting at high speeds.
| Model | 60/38 | 75/38 | 90/38 | 120/38 | |
| Application | Raw material | Maximum output | |||
| Water & Gas | PE | 500 | 650 | 1100 | 1350 |
| Antistatic Coating | PE-RT | 400 | 600 | 1000 | 1200 |
| Fittings | PP-R | 350 | 520 | 800 | 1100 |
| Drainage & Wastewater Discharge | PP | 350 | 520 | 800 | 1000 |
