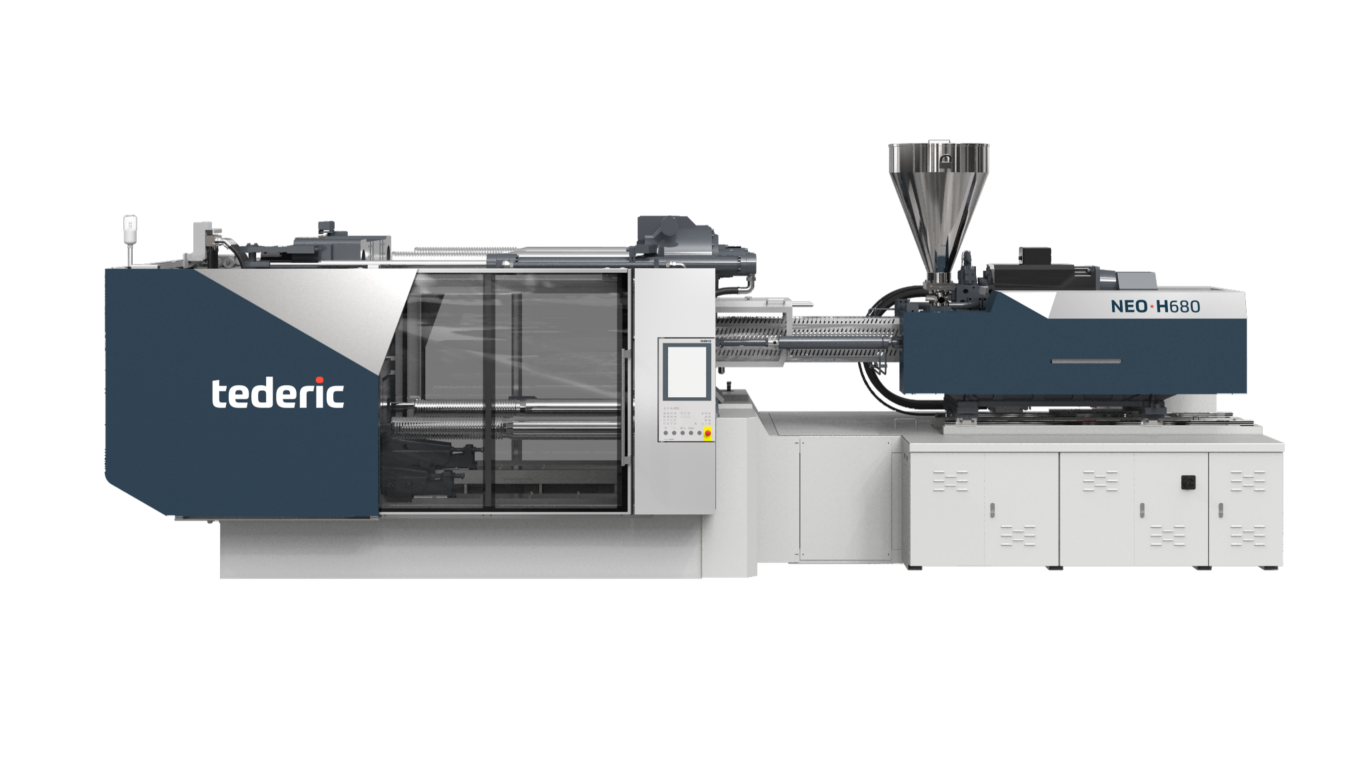

NEO·H Advanced Two-Plate Injection Molding Machine

Component Introduction

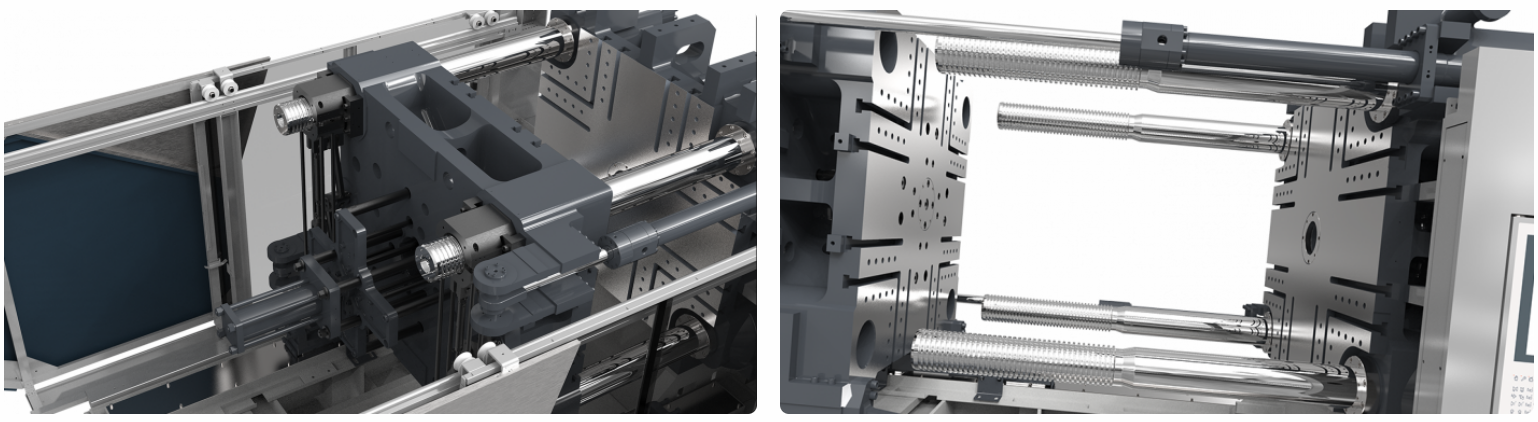

• Stable Synchronous Brake Structure: The brake cylinder is equipped with a buffer for precise braking without impact; the tie bar positioning is stable and evenly distributed.

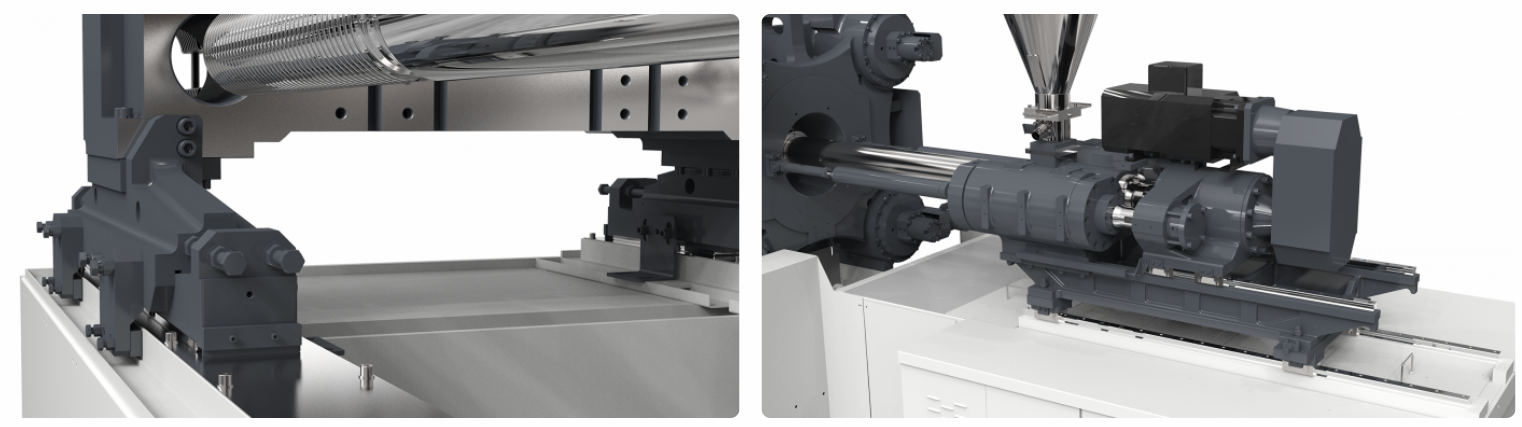

• Movable Template Slide Foot Skew Iron Support Device: Mold support weight increased by 15%, capable of supporting heavier molds, and easy to adjust parallelism.

• Large Mold Capacity and Opening Stroke: The unique large mold capacity and opening stroke characteristics of the two-plate structure accommodate more molds. Exclusive mold protection function for two-plate machines ensures safety and reliability.

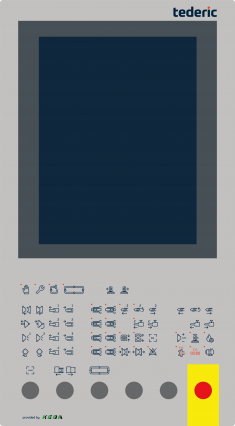

• International Standard Control System: Equipped with a standard 15-inch KEBA high-performance control system based on Linux; supports OPC, Modbus protocols for Industry 4.0 integration; can be freely programmed for easy secondary development, achieving various functions, larger screen size, and a more comfortable operation experience.

• Injection Table Rotation Device: Makes it easier to change the screw barrel.

• Double-Layer Linear Guide Injection Structure: Better rigidity, smoother operation, improved product quality repeatability, repeatability accuracy within 0.3%.
• Balanced Dual-Cylinder Moving Structure: Dual-shot cylinders are symmetrically arranged to ensure precise nozzle alignment. Stable injection, good sealing, effectively preventing resin leakage.
• Electric Preplasticizing System: Full series equipped with high-torque electric preplasticizing motors, saving 10%~25% energy compared to hydraulic motors; continuous uninterrupted operation provides better and more stable plasticization; easier to achieve synchronous storage and opening functions, significantly reducing the molding cycle.

• Shortened Molding Cycle: Full series top-opening linkage function; increased oil pump motor power broadens molding processes.
• Modular Electrical Cabinet Design: Electrical cabinets use modular design, separating low-voltage cabinets, high-voltage cabinets, and servo control cabinets for a more reasonable and safer structure.

Industries and Applications

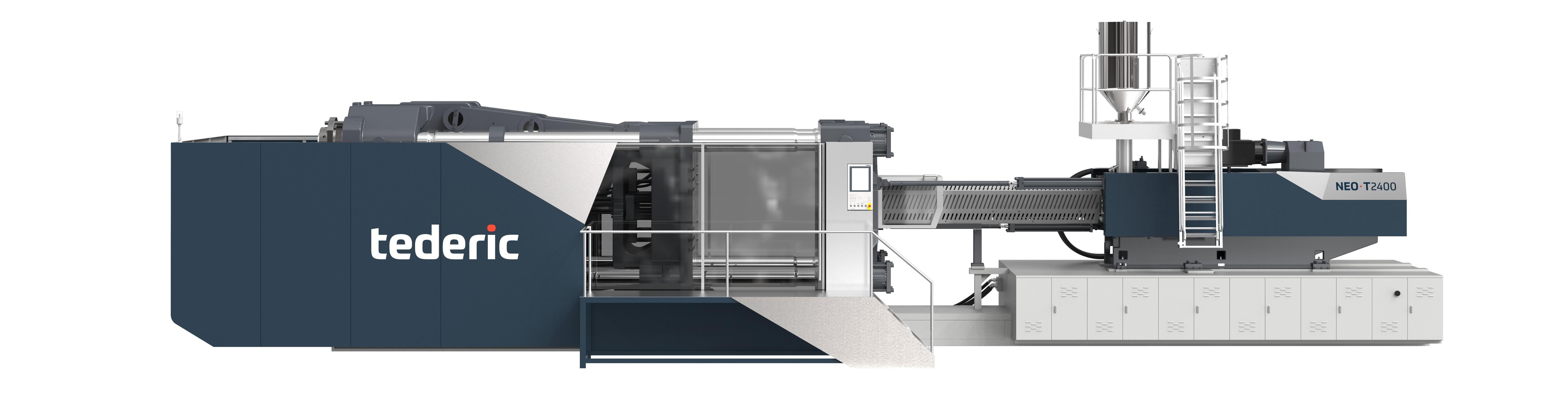

Product Showcase
